鋁三明治板

                                                                                    規格      種類      認證      特性      應用      組裝      折角      成形

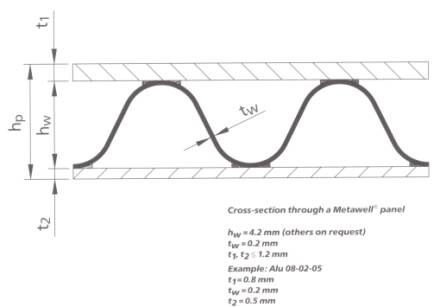

Specification  規格
Material               :
Sheet thickness   :
Panel width         :
Panel thickness   :
Surface coatings : 		aluminium
0.2 mm to 1.0 mm
being 1500 mm, other widths can be supplied on request.
4.7±0.15, 5.2±0.15, 5.5±0.15
conversion-treated / Primered / Coilcoated / Anodized / Galvanized 		　

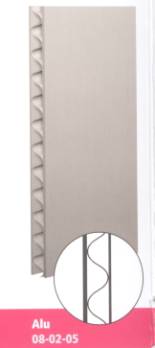

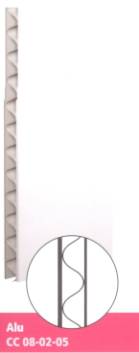

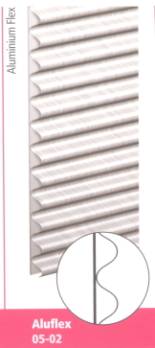

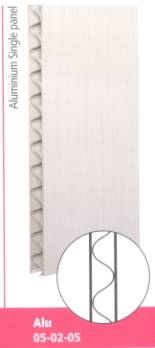

Product range  種類


Certification  認證
Certificates and Approvals for Metawell® Panels
    DIN 4102 B1
    DIN EN ISO 9001
    Certificate of Fire Approval (IMO Fire Test Procedure, Annex 1, Part 5 and Part 2)
    Testing standards:
        IMO-Resolution A653 (16)
        IMO-Resolution MSC.61 (67)
        Annex 1, Part 2 and 5, Annex 2
    EC type Examination (type approval) Certificate (IMO Fire Test Procedure, Annex 1, Part 5 and Part 2)
    EC (Moduled D) Certificate of Conformity MED modul D is based on this certificate　


Characteristics  特性
Low weight                                                                       重量輕
High rigid                                                                             堅固
Attractive surfaces                                                                美觀
Good dynamic behavior / Easy processing                              處理簡易，可使用傳統工具切割加工
Temperature resistance -40℃ ∼ +100℃
Airborne sound attenuation                                                隔音 Rw = 23∼27 dB
High static strength                                                      高靜態強度
Extremely good dynamic stability                               動態穩定度高
Recycling                                                                         可回收再利用
High thermal, chemical and physical durability         耐高溫、耐化學變化、耐物理變化
Quick assembly                                                              安裝快速
Whether uni-coloured or multi-coloured, fancy design or wood pattern, whether film, print, paint or natural stone, even or textured surface
多樣化表面處理(單色,多色,木紋,石紋,布面等.....)
As all metals Metawell® is resistant against all kind of environmental influences (humidity, change of temperature, UV-light, moderate acids and alkaline solutions)
具備所有金屬耐環境影響之特性(濕氣,溫度變化,紫外線,弱酸/弱鹼溶劑)　


Application  應用
Building sector (e.g. ceiling system, radiant cooling/heating systems, facades, interior construction)
建築物 (天花板, 輻射冷卻/加熱系統, 建築物外表, 內部裝潢)

Transportation system (railways, shipbuilding, automobile)
運輸系統 (火車, 造船, 汽車)

Machine-building
機械

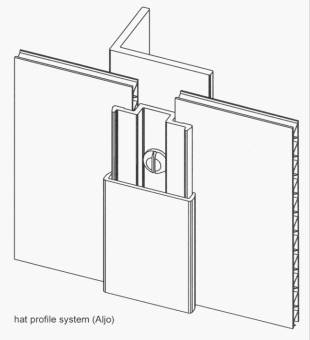

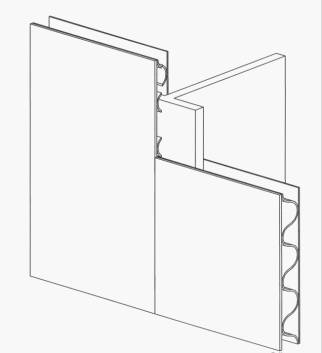

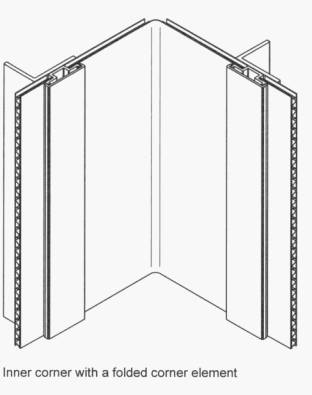

Installation  組裝

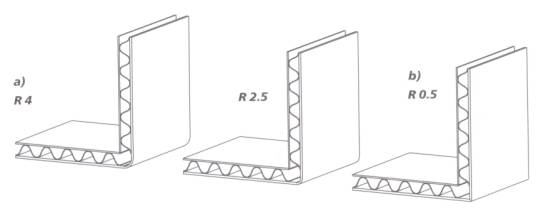

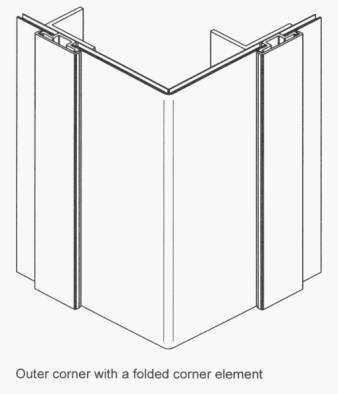

Canting  折角

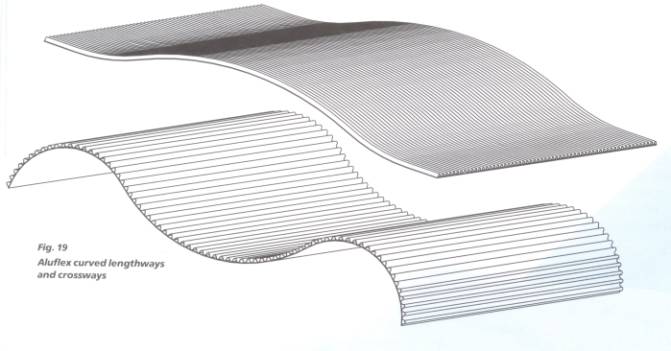

Forming  成形
